Naval Structure Scantling

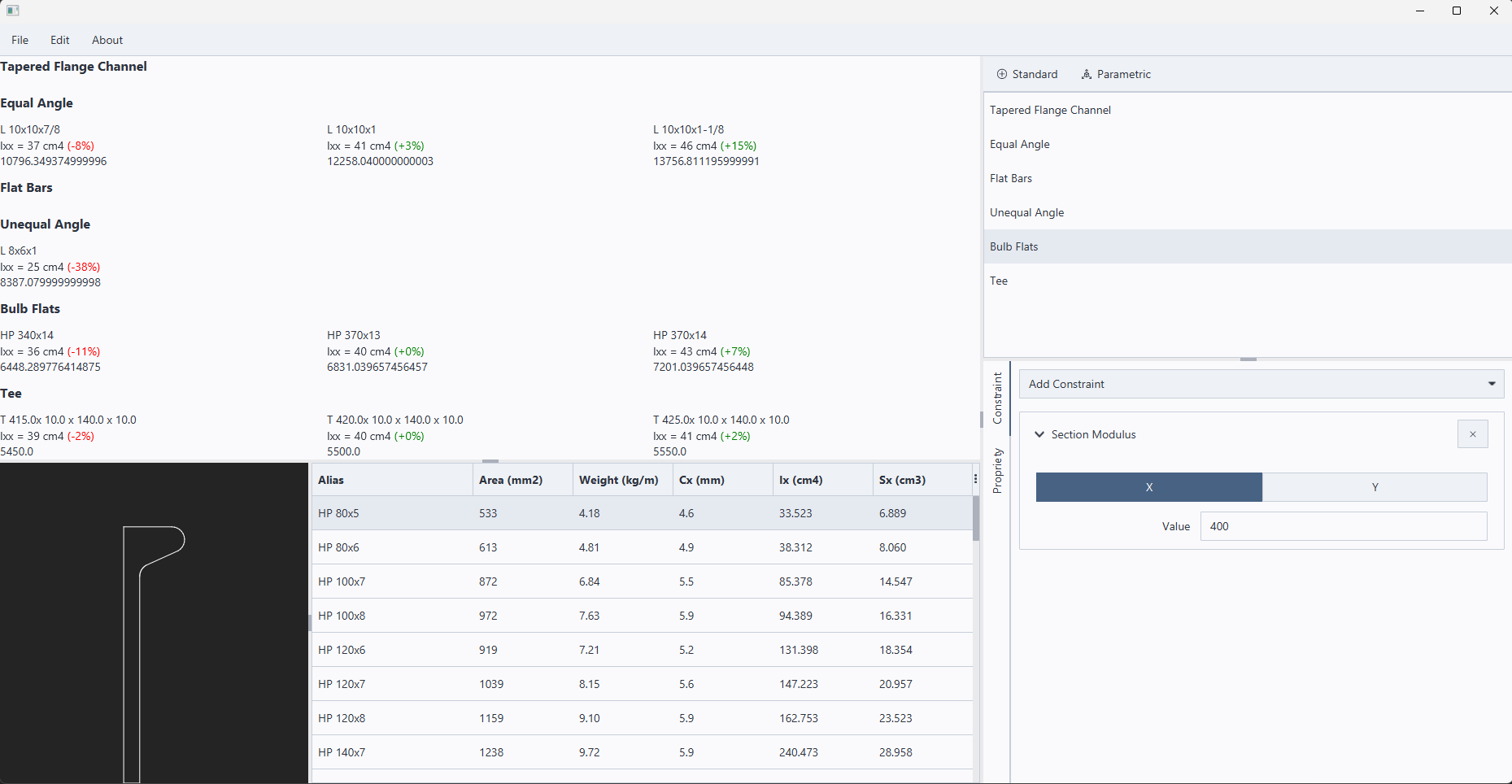

nSection is a parametric shape solver designed to help structural engineers and naval architects find the optimal structural section (scantling). It allows users to compare multiple standard and custom shapes against specific engineering criteria to find the most efficient and lightest section for their projects.

The platform features a vast database containing thousands of profiles from both North American and European catalogs. This includes standard shapes such as W-Beams, C-Channels, HSS (Square, Rectangular, and Round), Pipes, Flat Bars, and specialized sections like Bulb Flats.

Yes. Users can create extensive custom criteria based on geometric properties and engineering constraints. For example, you can set a maximum height limit or define a minimum required Section Modulus or Moment of Inertia to ensure the solver finds a section that meets your exact needs.

nSection prioritizes data accuracy for high-fidelity detailing. The software includes precise engineering properties, including exact geometry such as fillet radii and toe measurements, which are often simplified in other databases.

Yes. It is built to handle the specific requirements of marine structures, including the use of international standards like EN 10067 for bulb flats, which are common in ship construction.

While the full version is listed as "Coming Soon," you can currently explore the "Open Library" to view the shape database. Additionally, you can sign up to "Start Free Trial" to get notified when the platform launches and be among the first to access its high-performance web interface.
